- Inspired by Cherry G81-3077/G80-0832
- 10° typing angle
- Full 6063 aluminium construction
- Bead-blasted and anodised finish
- Top mounted, leaf-spring carbon fibre plate
- 21.5mm effective front height (with bumpons)
- QMK and VIA-compatible USB-C PCBs
- Integrated cable aesthetic
- Period-authentic product stickers
- 2.9kg (6.5lbs) / Numpad 0.9kg (2lbs) [unbuilt]
Renders of available options
(Courtesy of Pontus)
Group buy details:
OGR
- Price: $550/£442 ex.VAT
- Format: Raffle
- Date: Sunday 24th July until closing
- Units: 250
- Colourway options: Dolch & Blue/Grey
- Layout options: 7u bottom row (WKL) & 6.25u bottom row (WK)
- Estimated shipping timeline: Q2 2023
OGRN
- Price: $230/£185 ex.VAT
- Format: Open sale
- Date: Sunday 24th July until closing
- Units: Unlimited
- Colourway options: Dolch & Blue/Grey
- Estimated shipping timeline: Q2 2023
OGR Extras:
- 5052 Aluminium plate: $35
- PC plate: $35
- CF plate: $30
- PCB: $50
OGRN Extras:
- 5052 Aluminium plate: $25
- PC plate: $25
- CF plate: $15
- PCB: $30

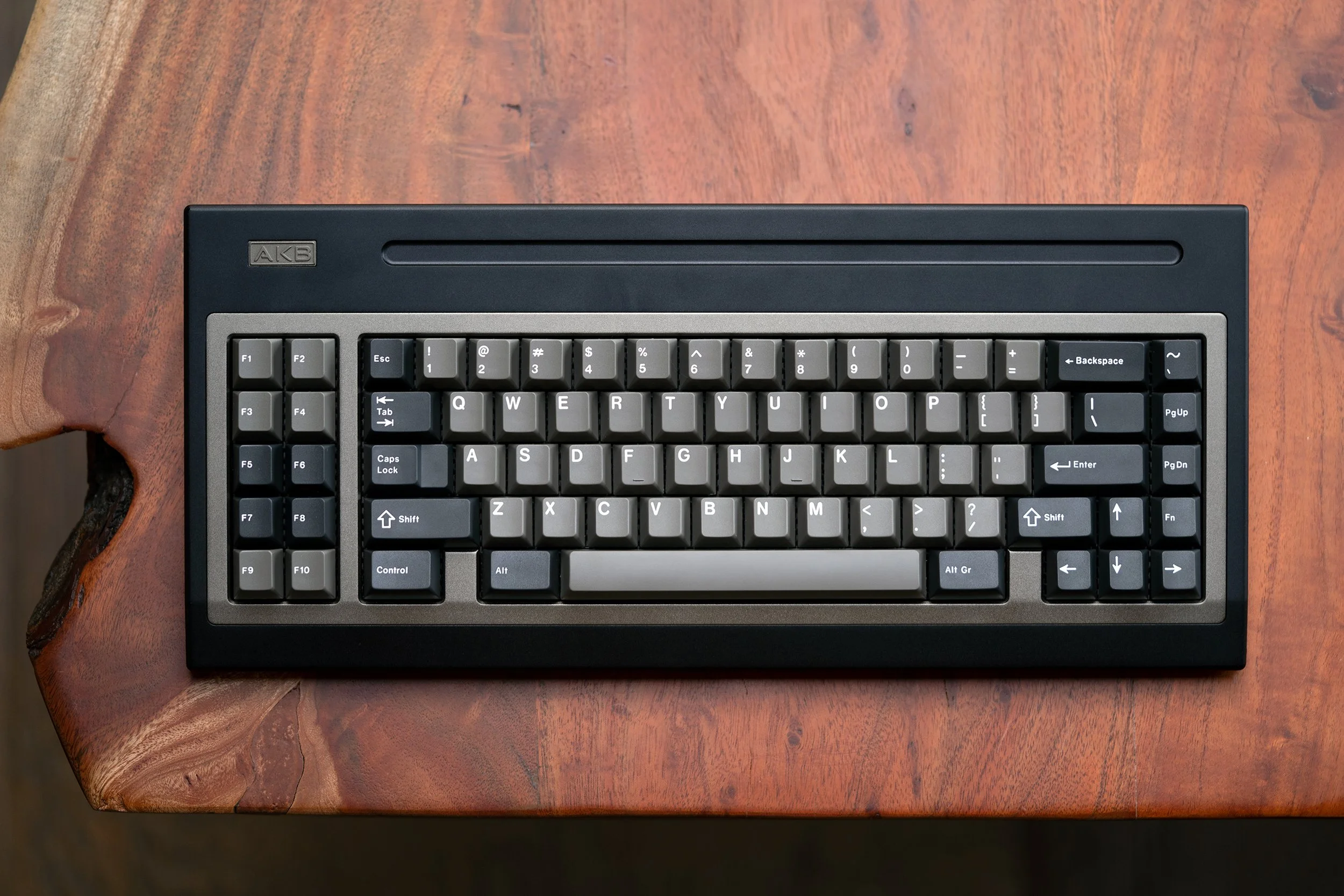

Prototype Photos – Dolch Colourway
(Courtesy of Koen)
The OGR was originally designed as an entry for the OG Summer competition on r/customkeyboards in 2019, which it thankfully won. It was originally inspired by various vintage keyboards, but chiefly the Cherry/NCR G81-3077 for the iconic Cherry nose, the pronounced seam and the large forehead. It also drew inspiration from the Cherry G80-0832 for the accented piece around the keycaps to give it a truly unique look. The name is a portmanteau of OG Summer and NCR, whose branding on the aforementioned G81-3077 was also the inspiration for the retro-styled AKB logo. While the PCB is USB-C compatible, the port is enclosed deep inside the case and the case parts gently clamp the cable down to give the aesthetic of a hard-wired cable.
Also, for those who are interested, there will be a numpad (OGR-N) available either as an optional extra or separately.
Two case options will be available – one for 7u bottom row with dual 0.75u blockers, and one with a single small blocker for 6.25u (WK) support. The plate provided will be universal, and fixed plate files will be available to download via the website.
OGR kit contents:
- 1 x Top Case – 6063 Aluminium
- 1 x Bottom Case – 6063 Aluminium
- 1 x Accent – 6063 Aluminium
- 1 x Plate – Carbon fiber leaf spring
- 1 x Badge – 6063 Aluminium
- 1 x Solder PCB – Black FR4 with green solder mask
- 1 x EVA plate foam
- 4 x AKB Bumpons – Injection molded silicone
- 1 x Bottom sticker
- 1 x Split cable grommet
- 10 x Torx button screw M3 x 6mm in A2 stainless steel (plate)
- 5 x Torx button screw M3 x 6mm in A2 stainless steel (accent)
- 6 x Torx button screw M3 x 12mm in A2 stainless steel (case)
- 2 x Torx countersunk screw M3 x 5mm in A2 stainless steel (badge)
- 1 x Instruction manual
OGRN kit contents:
- 1 x Top Case – 6063 Aluminium
- 1 x Bottom Case – 6063 Aluminium
- 1 x Accent – 6063 Aluminium
- 1 x Plate – Carbon fiber leaf spring
- 1 x Badge – 6063 Aluminium
- 1 x Solder PCB – Black FR4 with green solder mask
- 1 x EVA plate foam
- 4 x AKB Bumpons – Injection molded silicone
- 1 x Bottom sticker
- 1 x Split cable grommet
- 4 x Torx button screw M3 x 6mm in A2 stainless steel (plate)
- 4 x Torx button screw M3 x 6mm in A2 stainless steel (accent)
- 4 x Torx button screw M3 x 12mm in A2 stainless steel (case)
- 2 x Torx countersunk screw M3 x 5mm in A2 stainless steel (badge)
